113194HCA
€ 583,61
Niet op voorraad
STP3/R90CTCEA
| Bouwgrootte | Groep 3 |
|---|---|
| Capaciteit (cc) | 90 |
| Draairichting | Rechtsdraaiend |
| As | 1:8 Conisch (Europeesch std./Italiaans) M16x1,5 mm met 4,79 mm spie |
| Montageflens | Europeesch std./Italiaans 60,3 mm pasrand 4 bouts (114,3x149,5 mm) |
| Poorten | SAE flens |
| Uitvoering | Modulair |
| Werkdruk (bar) | 150 |
| Piekdruk (Bar) | 170 |
| Max. toelaatbare flow (lpm.) | 220,5 |
| Min. toerental (rpm.) | 600 |
| Max. toerental (rpm.) | 2500 |
| Gewicht (kg.) | 8,9 |

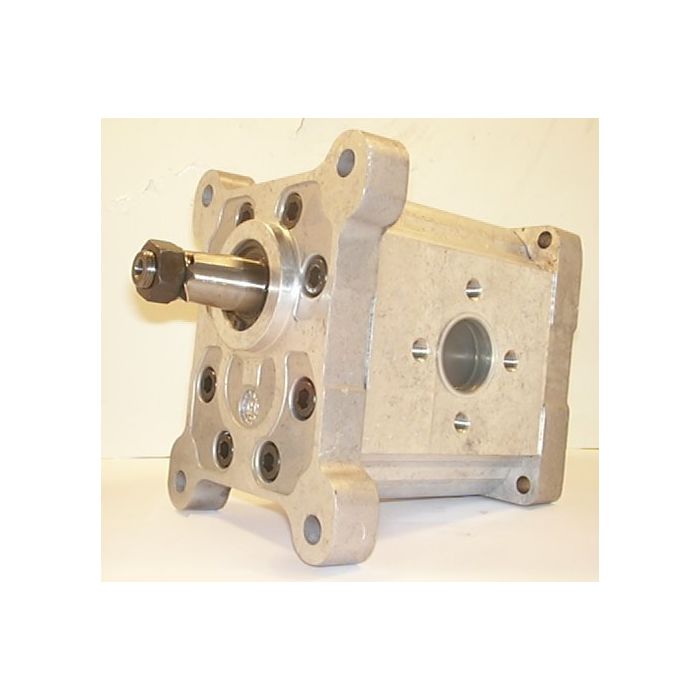

SNP 3 tandwielpomp
