113181HCA
€ 612,46
Niet op voorraad
STP3/R75CTCSA
| Bouwgrootte | Groep 3 |
|---|---|
| Capaciteit (cc) | 75 |
| Draairichting | Rechtsdraaiend |
| As | 1:8 Conisch (Europeesch std./Italiaans) M16x1,5 mm met 4,79 mm spie |
| Montageflens | Europeesch std./Italiaans 60,3 mm pasrand 4 bouts (114,3x149,5 mm) |
| Poorten | Europeesch std./Italiaans "+" patroon (51x27/62x36 & 40x20/51x27) |
| Uitvoering | Modulair |
| Werkdruk (bar) | 180 |
| Piekdruk (Bar) | 200 |
| Max. toelaatbare flow (lpm.) | 186 |
| Min. toerental (rpm.) | 600 |
| Max. toerental (rpm.) | 2500 |
| Gewicht (kg.) | 8,2 |

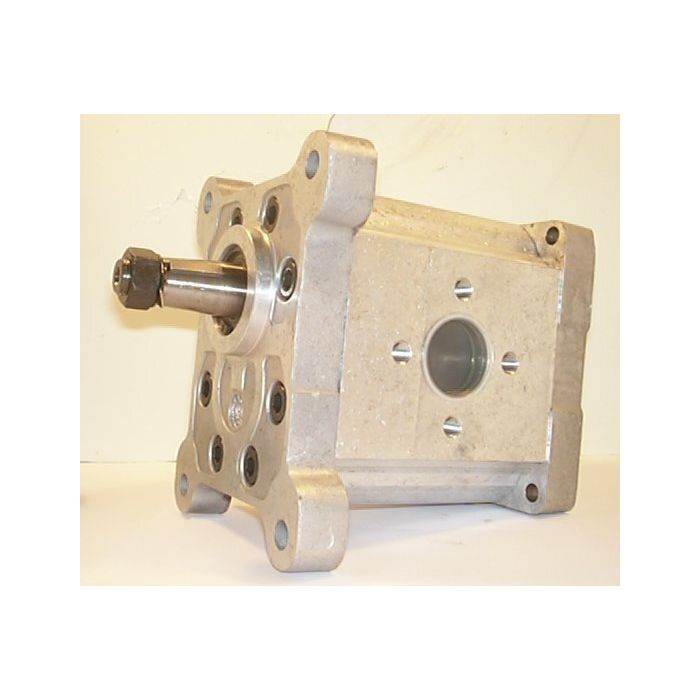

SNP 3 tandwielpomp
